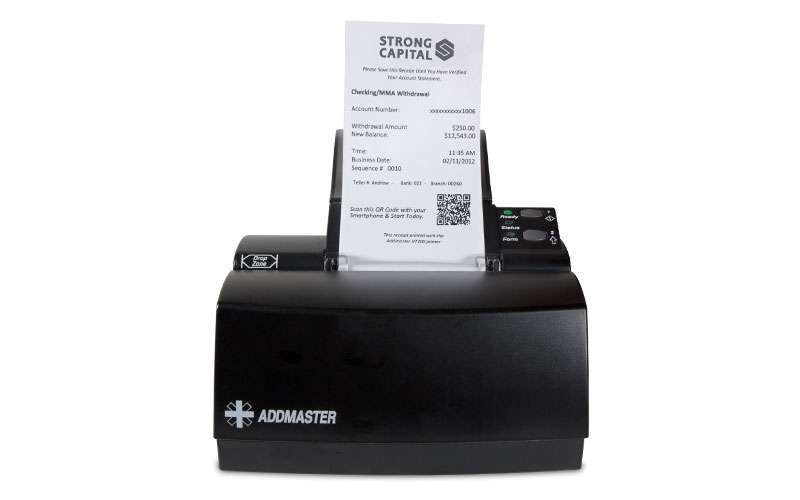

The compact and network accessible IJ7200 Teller Receipt and Validation Printer offers banks more control, increased productivity and unmatched print quality. IP addressable, the IJ7200 enables connectivity via Ethernet, USB 2.0 or wireless. Able to handle a wide range of bank forms with speed and ease, the IJ7200 is also compatible with most popular core banking software. The IJ7200 also features Addmaster’s high performance print cartridge, which produces highly readable receipts that you can turn into a sales tool with engaging messaging. Our exclusive QR code generation feature can help drive customers directly to your mobile apps to receive your latest offers.
| Technical Specifications | |
|---|---|
| Print Method | Thermal inkjet |
| Ink Cartridges | Part #97091 (300 × 288 dpi, 600 native dpi) |
| Print Speed | 8 lines per second at 42 characters/line 14 lines per second at 10 characters/line |
| Microprocessor | ARM 7 |
| Code Emulations | Epson, IBM, DH, others by request |
| Connectivity | 1 USB 2.0 and 1 Serial RS232 port Wireless IP addressable |
| Serial Baud Rate | 9600 or 38400 (dip switch selectable) |
| Power Source | 24 VDC, 1A external power supply |
| Product Metrics | |
| Overall Dimensions | Width 7.0" × Depth 6.2" × Height 3.6" |
| With Paper Holder | Width 7.0" × Depth 9.2" × Height 4.6" |
| Weight | 2.9 lb (1.3 kg) |
| Shipping Weight | 4.4 lb (2.0 kg) |
| Options | |
| Automatic form positioning | |
| Paper roll holder arms (replaces covered roll holder) | |
| Form holder bracket (replaces covered roll holder) | |
| Media | |
| Receipt Paper Roll | Width 3" × Diameter 3" (76mm × 76mm) |
| Receipt Paper Print Zone | Width 2.75" |
| Form Size | Minimum width 5.5" Maximum width unlimited |
| Form Print Zone | Width 2.75" top line at 1.1" from form bottom (prints 5 lines above MICR line, 6 lines if no MICR) |
